CNC Turret Lathe

YH-15 CNC

 Turret Lathe.

42mm (1.65)") bar capacity, 8-station turret chucker.

Features

High Precision Spindle

Double roller bearings and ball bearings fitted on the spindle offer large contact surface ensuring highest rigidity for heavy loads and superior surface finish. Spindle bearings are permanently lubricated precision class P4. The spindle’s suitable span, heavy cast structure and gear-free design eliminate vibration and meet the high rigidity and high precision.

High Speed Turret

The 8-position tool turret features high precision curvic coupling with powerful hydraulic clamping for heavy cutting. The high turret indexing rate is made possible by a non-stop random indexing system, allowing quick tool change over, high positioning speed and a reduction in non-cutting time. Tool change time takes as little as 0.3 second.

Tooling System

6” 3-Jaw chuck

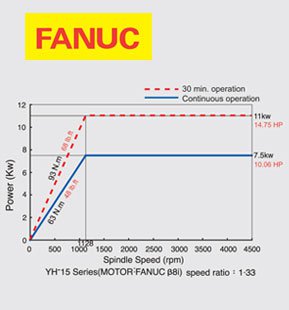

15HP FANUC Spindle Motor

FANUC OiTC

THK Linear Guides

X and Z slideways use high rigidity linear guide ways from THK and incorporate high precision ballscrews to ensure rapid feed and high precision performance. THK’s heavy load linear guide way has low friction resistance and low thermal deformation at rapid feeds to help maintain optimum cutting capability over long periods. The ballscrews are preloaded to eliminate backlash. A central lubrication system automatically delivers oil to the axes. With all these features, it is no surprise that YH15 reduces non-cutting time to a minimum.

Machine Base

The one-piece, Meehanite casting base has been proven to have significant advantages for precision turning. The uniformly dense, fine grained castings distribute stress and heat throughout the machine’s entire structure.

Precision – VDI 3441 Method by Renishaw laser interferometry - THK Linear Guides
